QL1100A8KAY
ISUZU
Product Description

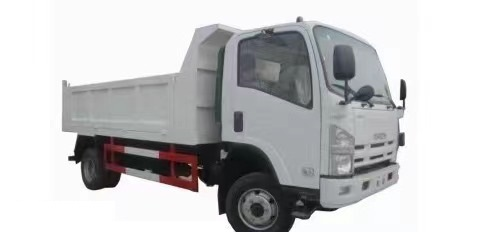

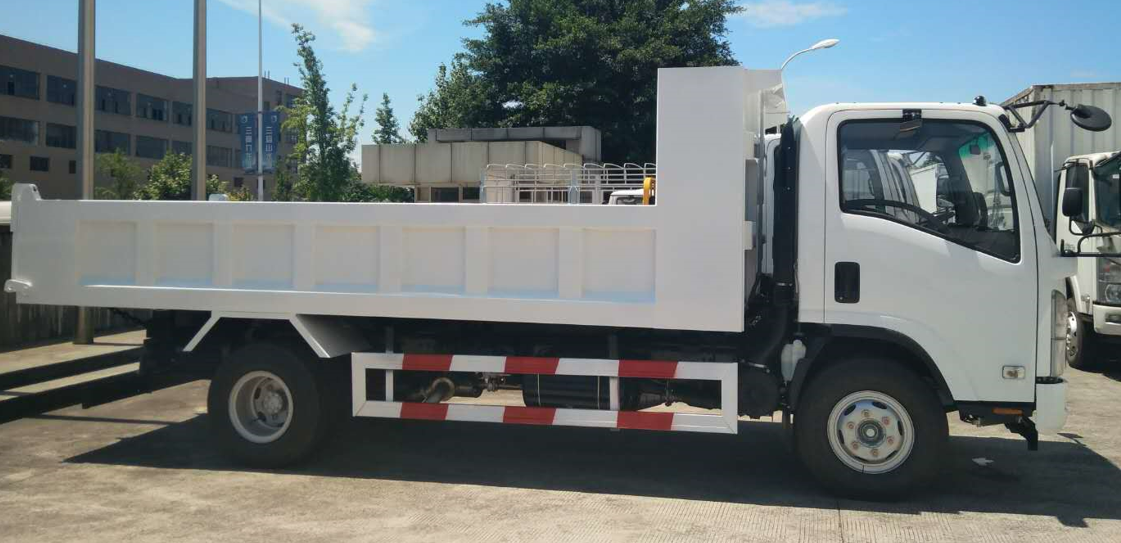

Qingling ISUZU Dump Truck 700P 4x2 QL1100A8KAY
Advantages:
• More environmentally friendly
Qingling Guo V products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
ISUZU 700P Van Truck Specifications (Euro V)
Model/车型 | QL1100A8KAY |
Driving type/驱动形式 | 4×2 |
Chassis Overall dimension/底盘外形尺寸 | 6980*2170*2330mm |
GVW/总质量 | 10000 KG |
Curb weight/整备质量 | 3180 KG |
Wheelbase/轴距(mm) | 3815 mm |
Fuel Type/燃油种类 | Diesel/柴油 |
Engine Model/发动机型号 | 4HK1-TC51 |
Engine Power/发动机功率 | 140kW/190PS |
Emission/排放 | Euro V/ 欧五 |
Front wheel track /前轮距 | 1680 mm |
Rear wheel track/后轮距 | 1650 mm |
Tire/轮胎 | 235/75R17.5 14PR |
Cabin/驾驶室 | single row/单排 |
Other configurations/其他配置 | ABS system/ABS系统 power steering/动力转向 Reflective signage/反光标识 air conditioning system/空调系统 Maintenance-free battery/免维护蓄电池 Radial tire/子午轮胎 |
Vehicle Up-body 上装规格 | Configuration/配置: Upper loading weight is about 1.9 tons 上装重量约1.9吨 Inner space size/内空尺寸: 4600*1900*450mm Base plate/底板: 700 4.0 Side plate/边板: 700 4.0 Side plate/边板: 700 4.0 Rear panel/后板: 700 4.0 Sub frame/副车架: 80 * 80 * 4mm square tube/方管 Main longitudinal beam/主纵梁: 160 channel steel/槽钢 Side beam/边梁: 100 channel steel/槽钢 |
