Product Description

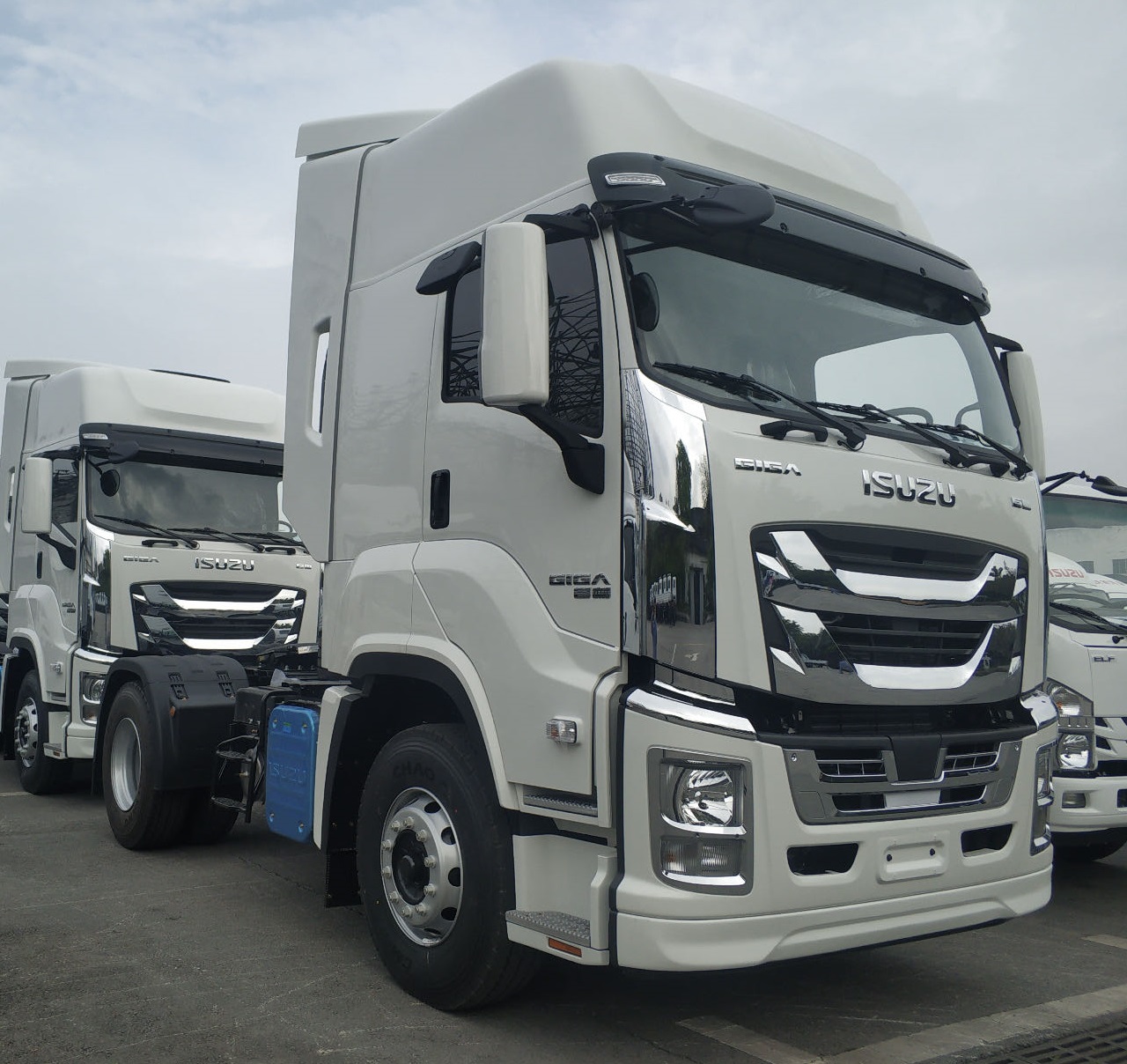

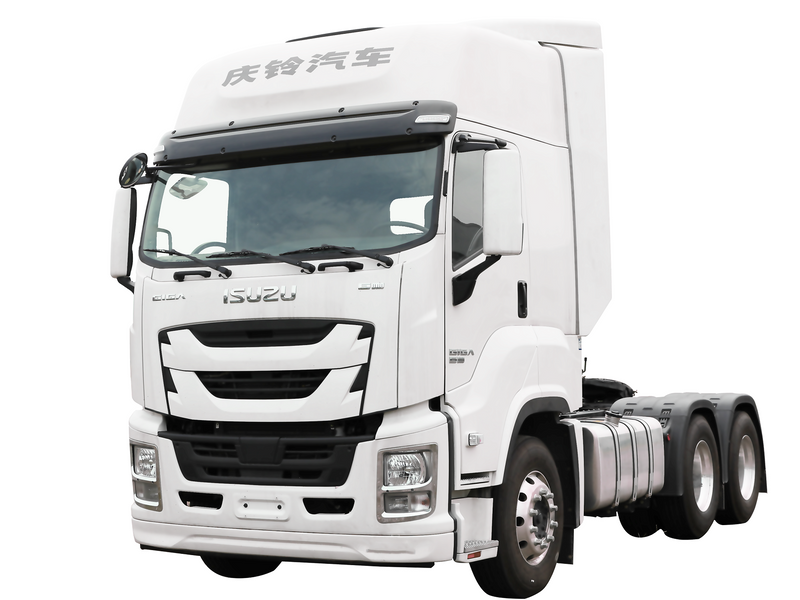

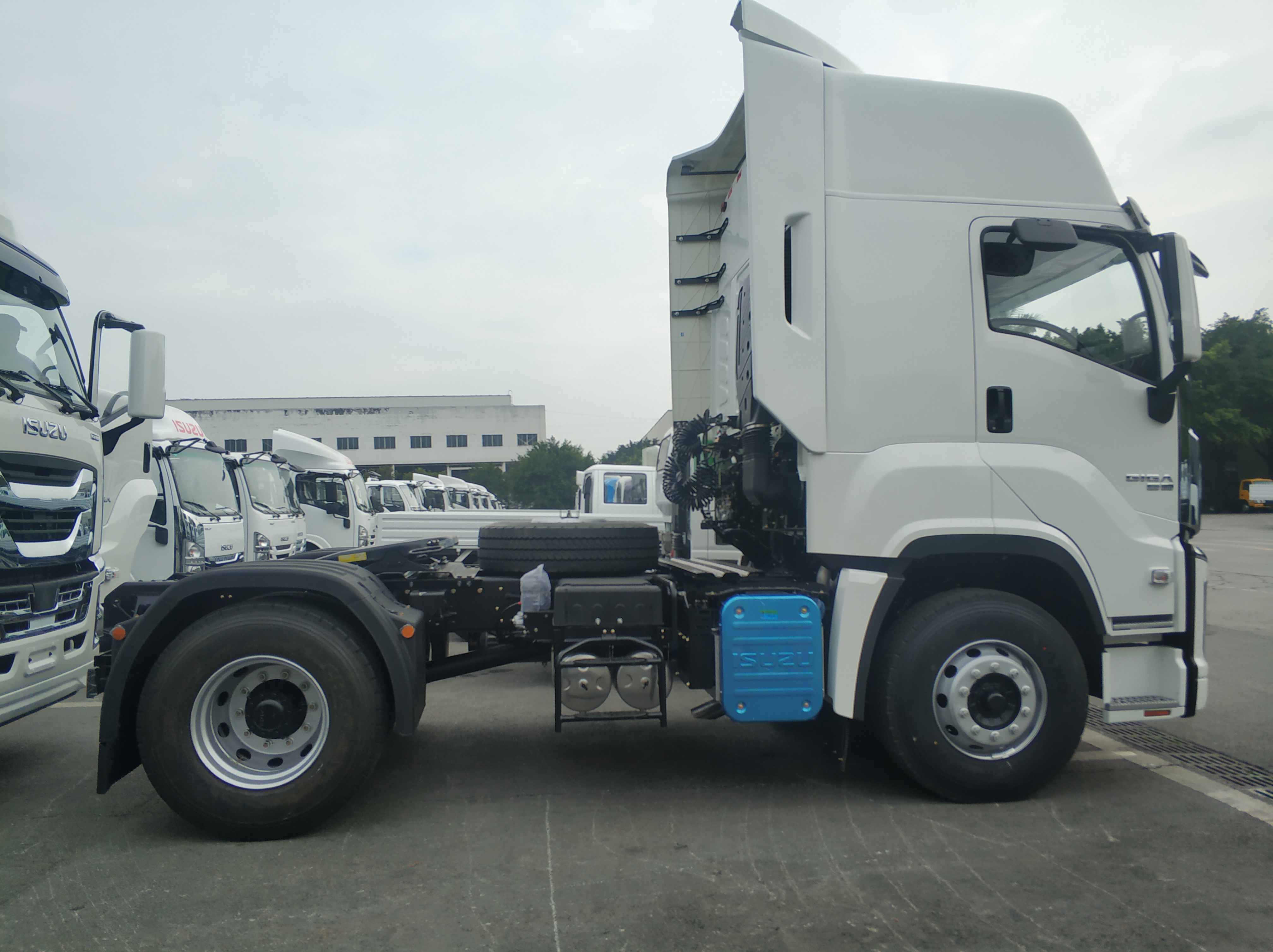

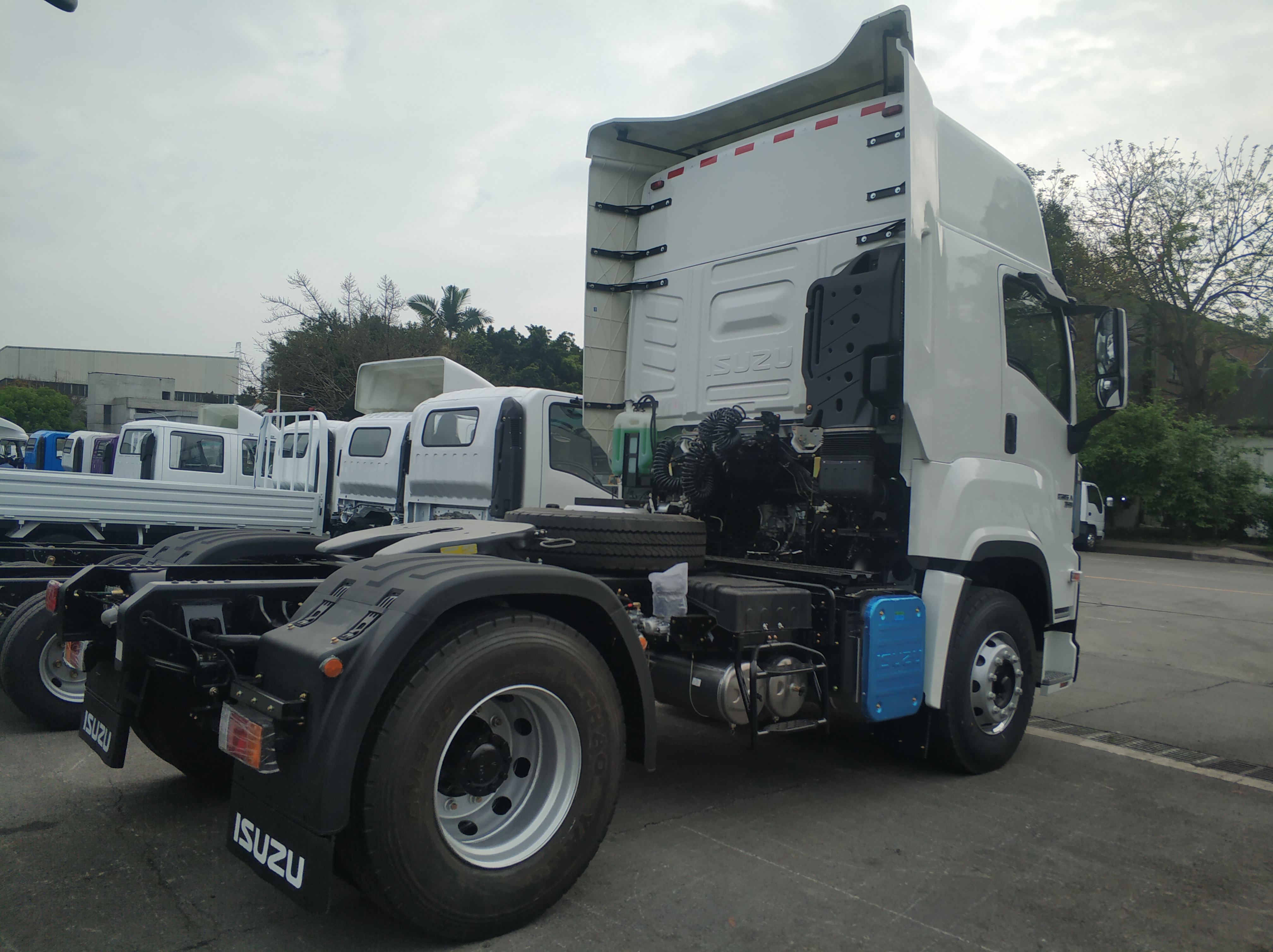

Hot Sale 460HP 6X4 VC66 Tractor Trailer Head Truck for Sale
Main Specifications:
ISUZU TRACTOR TECHNICAL SPECIFICATION (4X2) ISUZU牵引车技术规格（4X2） |
||
Description 名称 |
Tractor 牵引车 |
|
| Truck Model/型号: | QL4180W7KDR |
|
Wheelbase 轴距 |
Drive驱动 |
4X2 |
Size尺寸 |
3900mm |
|
Weight重量 |
Curb weight 整备质量 |
6870 kg |
Gross weight总质量 |
18000 kg |
|
准拖挂车总质量 |
35000 kg |
|
Dimensions尺寸 |
Length长 |
6240 mm |
Width宽 |
2540mm |
|
Height高 |
3970mm |
|
Max. speed最大速度 |
110km/h |
|
Overhang 悬挂 |
Front Overhang 前悬 |
1370mm |
Rear Overhang后悬 |
970mm |
|
Engine发动机 |
Model 型号 |
ISUZU 6WG1-TCG61-460PS(Euro VI) 欧六 |
Power 功率 |
338kw/2000r/min |
|
Gearbox变速箱 |
ZF16 speed档 |
|
Front axle前轴 |
ISUZU QL-F075 (7.5t) I-shape cross section, air drum brake with ABS ISUZU QL-F075 (7.5吨)工字型断面,端拳式,鼓式制动带ABS |
|
Rear axle后桥 |
ISUZU RT-210 (13t x 2)integral axle, air drum brake with ABS ratio: 3.909 ISUZU RT-210 (13吨*2)整体式鼓式制动带ABS, 主减速比3.909 |
|
Front suspension前悬 |
标配少片簧 3/- |
|
Rear suspension后悬 |
Standard few leaf spring 标配少片簧 3/- |
|
Cabin驾驶室 |
GIGA VC66 high roof cabin GIGA VC66高顶标配 |
|
Tire轮胎 |
295/80R22.5 18PR 12R22.5 18PR |
|
Clutch离合器 |
430mm single plate spiral spring type 430mm膜片弹簧离合器 |
|
Steering转向机 |
ZDZ110 |
|
Brake system刹车系统 |
full air, dual circuitair drum brake with ABS, aluminum air tank, KNORR brake system 气压、双回路、前后鼓式制动器带ABS,铝合金储气筒,KNORR制动系统 |
|
Fuel tank油箱 |
400L aluminum fuel tank 400L铝制油箱 |
|
Saddle鞍座 |
JOST 50# |
|
Fairing整流罩 |
YES有 |
|
Seat座椅 |
air suspension driver seat, mechanical passenger seat (Integrated fabric) 司机气悬座椅,乘客座椅机械式(一体式普通面料) |
|
Air-condition空调 |
electronic control air-condition电控空调 |
|
Window lifter开窗器 |
electronic window lifter (Left/Right) 左右电动窗 |
|
Cabin suspension驾驶室悬挂 |
electric flip, pneumatic suspension, central lock 电动翻转,空气悬挂,中控锁 |
|
A/V system 影音系统 |
radio收音机 |
|
Frame车架 |
850×288（8） |
|
Fender挡泥板 |
instant plate fender整体式挡泥板 |
|
